Signaling Alarms - Dual Tone, NEMA 4X IP65 for Harsh Environments

$106.66

Item# M22-30K-120VB

Volume discounts available
Volume Discount Schedule
Quantity Price each
1-4 $106.66
5-9 $104.53
10-24 $102.39
25-49 $98.13
50-99 $97.06
100+ $95.99

In stock

Lead Time (If not in stock): 2 weeks
Signaling Alarms - Dual Tone, NEMA 4X IP65 for Harsh Environments M22-30K-120VB M22-30K-120VB
  • Mounts in Standard 22 mm (0.87") Pushbutton Hole
  • UL Type 4, 4X, 13, IP65
  • Sound Output Range 65 to 105 dBa @ 1 meter
  • Selectable Continuous/Pulsing and Wobble on 65 mm (2.6") Model
  • Adjustable Sound Pressure Levels on 45 (1.8") and 65 mm (2.6") Models
  • 12 Vac/dc, 120 Vac or 240 Vac
  • Plug-In Terminal Block–IP2X Rated
  • M22-30K Models for Use in Food Industry

M22-30K-120VB Model Options

View all models

Edit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Supply Voltage
Features

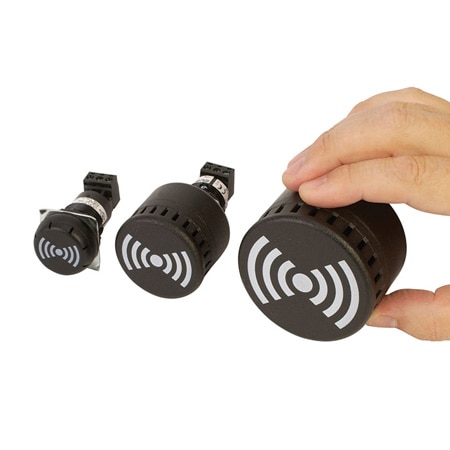

The M22 Series panel mount signaling alarms are made of heavy-duty industrial, UV stabilized polycarbonate and are intended for indoor or outdoor use. They are UL Type 4/4X/13 and IP65 approved for harsh environments and are watertight. The M22-30K models are specifically designed for the food industries and have fully enclosed housings to prevent contaminates from accumulating. The M22 series alarm sounders are equipped with a plug-in three point finger-safe terminal block for ease of wiring and configuring the tone type. All M22 models can be configured for either continuous or pulsing tones. The M22-65G models can also be wired for a wobble tone (alternating frequency). Users may also adjust the intensity of the sound levels on the 45 and 65 mm (1.8 and 2.6") alarm models.

Specifications
Materials: UV stabilized polycarbonate
Operating Temperature: -25 to 60°C (-13 to 140°F)
Mounting Nut Torque: 1.7 Nm (15 in/lbs)
Terminals: 14 AWG (2.5 mm2), IP2X

View Specs above for additional information.
