24-Channel Photo-MOS Relay Output Board - Panel Mount

24-Channel Photo-MOS Relay Output Board
Warranty
  • RoHS Icon

$596.84

Item# OME-DB-24POR

Volume discounts available
Volume Discount Schedule
Quantity Price each
1-4 $596.84
5-9 $567.00
10-24 $555.06
25-49 $531.19
50-99 $519.25
100+ $507.31

In stock

Lead Time (If not in stock): 3 weeks
24-Channel Photo-MOS Relay Output Board OME-DB-24POR OME-DB-24POR
  • 24 Photo MOS Relays
  • One (Optionally Isolated) 50-Pin Compatible Connector, One 37-Pin D-Sub Connector and One 20-Pin Connector
  • Connects to OME Series of Data Acquisition Boards with Digtial Outputs
  • LED Indicates Relay Status
  • Screw Terminals for Easy Field Wiring
  • 5,000 Vdc Optical Isolation
  • Switch up to Maximum 0.13 A at Maximum 350 Vac
  • 5 Vdc Logic Levels

OME-DB-24POR Model Options

View all models

Edit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Form Factor
Number of Channels
Output Type
Max Current/Relay
Max Switching Voltage
Supply Voltage
Features

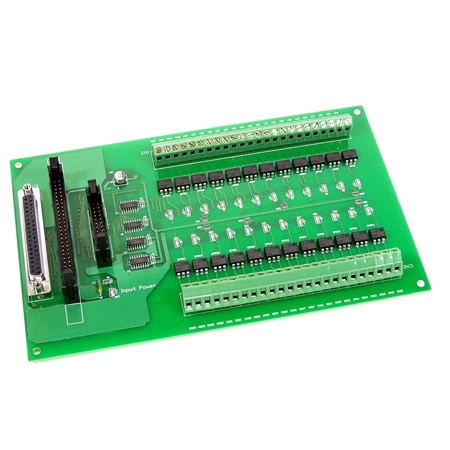

The OME-DB-24POR includes 24 normally open, Form A, Photo MOS Relays. The board interfaces to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The user can use the OME-DB-24POR to switch loads, up to 350 Vac and up to 0.13 A. The relay is energized by applying a 5 V signal to the appropriate relay channel on the 50-pin compatible connector, 37-pin D-Sub connector or 20-pin flat-pin connector. Twenty-four enunciator LED’s, one for each relay, light when their associated relay is activated.

Specifications
Turn-On Time:
0.7 ms (typical)
Turn-Off Time: 0.05 ms (typical)
Output On Resistance: 23 Ω (typical)
Load Voltage: 350 V (peak AC)
Power Dissipation: 500 mW
Input / Output Isolation: 5000 Vac
Continuous Load Current: 0.13 A (peak AC)
Power Consumption: +5 V @0.3 A max
Dimensions: 130 H x 220 mm W (5.1 x 8.7")
Operating Temperature:
0 to 60°C (32 to 140°F)
Storage Temperature:
-20 to 70°C (-4 to 158°F)
Humidity: 5 to 90% RH non-condensing
