24-Channel Power Relay Output Board - Panel Mount

24-Channel Power Relay Output Board

$627.86

Item# OME-DB-24PR/24

Volume discounts available
Volume Discount Schedule
Quantity Price each
1-4 $627.86
5-9 $596.47
10-24 $583.91
25-49 $558.80
50-99 $546.24
100+ $533.68

In stock

Lead Time (If not in stock): 3 weeks
24-Channel Power Relay Output Board OME-DB-24PR/24 OME-DB-24PR/24
  • Accepts 20-Pin Connector (OME-DB-24PR Only) to Control 8 Form C and 8 Form A Relays
  • Switch up to 5A at 250 Vac /5A at 30 Vdc
  • Includes Varistor to Protect Each Channel Against High Voltage Spike
  • Screw Terminals for Easy Field Wiring
  • 50-Pin Header Connects Directly to OME-PIO-D24,
    OME-PIO-D48, OME-PIO-D96, OME-PIO-D144 or Other OPTO-22 Compatible Board
  • 20-Pin Header (OME-DB-24PR Only) Connects Directly to OME-A-82XPG Series or OME-PCI-1800 Series
  • 37-Pin D-Sub Connector (OME-DB-24PRD Only) Attaches to OME-PIO-D24, OME-PIO-D48,
    OME-PIO-D56, OME-PIO-D96 or OME-PIO-D144 Boards

OME-DB-24PR/24 Model Options

View all models

Edit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Supply Voltage
Form Factor
Features
Number of Channels
Output Type
Max Current/Relay
Max Switching Voltage

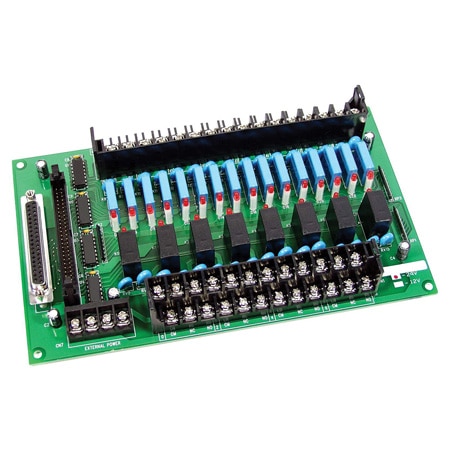

The OME-DB-24PR 24-Channel power relay output board consists of 8 form C and 16 form A electromechanical relays for efficient switching of loads by programmed control. The contact of each relay can control a 5 A load at 250 Vac/30 Vdc. The relay is energized by applying a 5 voltage signal to the appropriate relay channel on the 50-pin OPTO-22 compatible connector, 37-pin D-sub connector (OME-DB-24PRD only) or 20-pin flat cable connector (OME-DB-24PR only). Twenty-four enunciator LED ’s, one for each relay,light hen their associated relay is activated. To avoid overloading your PC ’s power supply,this board needs a +12 Vdc or +24 Vdc external power supply.

Specifications
RELAY
Nominal Load:
50 A/250 Vac, 5 A/30 Vdc
Maximum Switching Power: 0.1 HP
Maximum Switching Voltage: 270 Vac, 150 Vdc
Maximum Switching Current: 5 A
Life Expectancy: Mechanical (2 x 107),
Electrical (3 x 104)
Time Value: (10 ms)
Control Logic: Input TTL high (+5 V), relay on
Power Consumption:
24 V@0.8 A maximum; 5 V @ 0.2 A maximum
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Dimensions: 210 H x 130 mm W (8.3 x 5.1')
Humidity: 5 to 90% RH non-condensing
